vKey - Virtual Keypad Information

vKey is a "Virtual Keypad" for home or business security systems. As the name implies, vKey is a program that creates a virtual security system keypad on a standard PC . This virtual keypad supports all the basic functions of a wall mounted security keypad plus many additional features. Since it runs on a PC it can provide either local or remote access to security systems. vKey supports the the popular line of CADDX^TM NX-8 or NX-8E security system panels.

vKey allows homeowners or business managers to use a PC to access and control the security panel in their home or office. All the basic features are supported to control the system on a daily basis.

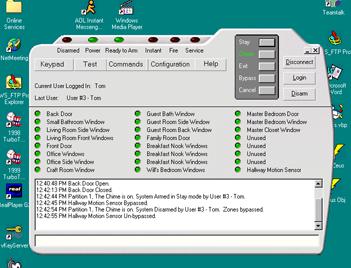

vKey main window on the desktop

Full Keypad Functionality

All standard keypad function are supported from the virtual keypad software.

Bypass zones, arm, and disarm the system.
Add, change, and delete user PINs.
Enter zones names.
Set system time and date.

Additional Functionality

In addition to the basic functions, you can

Monitor openings and closings from a central location.
View detailed daily log files in ready to print format.
Use long zone names.
Associate real names with user numbers.
Access systems via the Internet and local network.
Execute X10 automation commands.

Internet and Local Network Support

All the functionality can be accessed from one single computer, or from a local home or company network. The functions can also be used from remote locations via the Internet.

In this way, a business owner can check the status of a security system from home, including checking the time of recent openings and closings. Or a homeowner could disarm a home system from the office to allow access to workers or delivery people.

Compatible with Home Automation

vKey is compatible and complementary to any home automation control system that uses the "X10" protocol. X10 commands can be sent from vKey through the Caddx panel, even when vKey is being used remotely over the Internet. vKey is especially well suited for use along with our Zeus Home Control software. For specific ideas how home automation can be integrated with security, read the brief Zeus and Security Systems page.

Revision History

Version 1.1 Build 4, Dated January 8, 2002

Build 4 of Version 1.1 now includes an online Help file.

Version 1.1 Posted September 4, 2001

Version 1.1 of vKey adds the capability to automatically synchronize with the security panel the first time it is run. The first time vKey Server is run, it will download information about the system. Information about all active zones, including any stored name and zone type and information about each currently defined user will be gathered.

Version 1.0 Posted August, 2001

This is the first production version of vKey and includes the recently added support for multiple simultaneous remote access via the Internet.

Each version contains several small refinements and bug fixes. Thank you to those people who suggested or reported them.

Download Available

A fully functional 30-day evaluation version which will support up to 24 zones and one partition is available for download at no cost. To download a copy of the vKey software, visit the vKey Registration page and fill out the form. The downloaded evaluation version can be upgraded at any time to a fully registered version by visiting our secure Online Order page.

Availability and Pricing

vKey Version 1.1 is available now directly from Trax for $179.

Enterprise pricing is available for more than 3 locations. Dealer and manufacturer inquiries invited.

If you have any questions that are not answered here or if you have any general comments, please visit our Guestbook and post them there.
